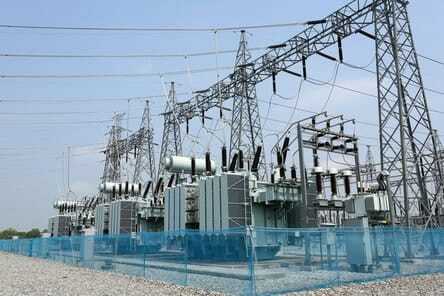

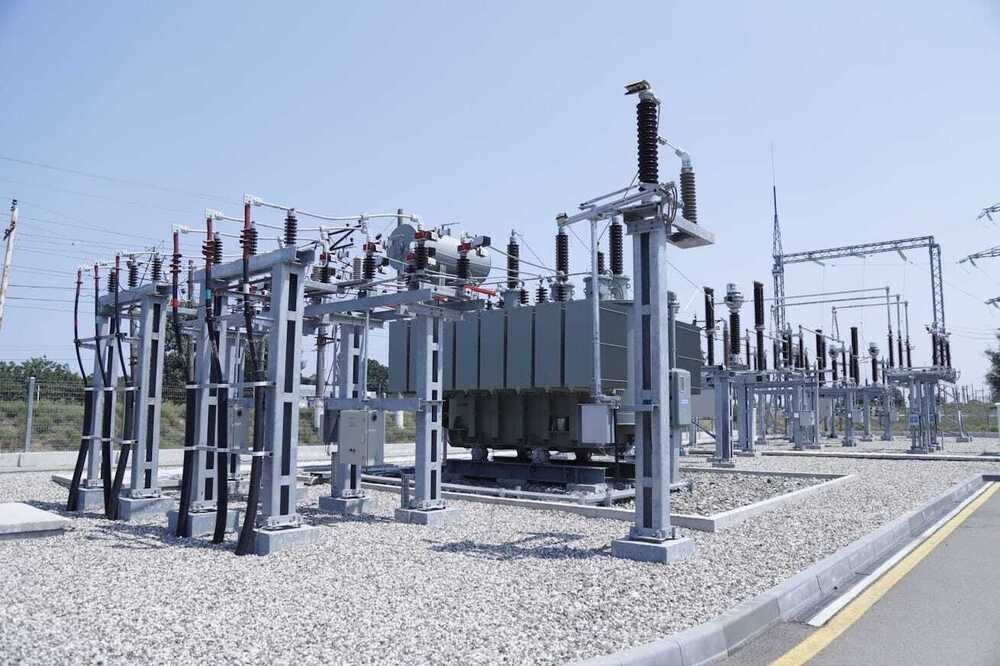

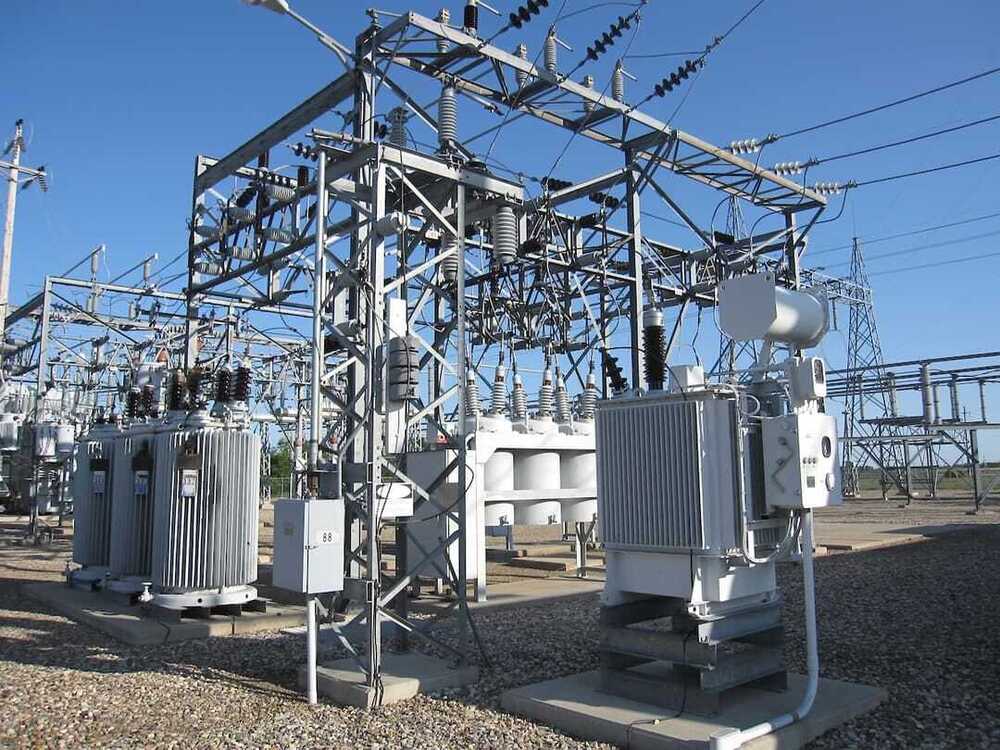

Power Sub Station GI Structure

Get a Price/Quote

MOQ : 50 Pieces

Power Sub Station GI Structure Specification

Wall Materials
GI Sheets with support framing or brick masonry

Window Material
Powder coated Aluminum, Glass, or GI with Louvers

Dimension (L*W*H)
Customizable; common for structures: up to 20m x 10m x 15m

Open Style
Fixed/Sliding as per module

Insulation
Generally non-insulated; insulation for control rooms if present

Connection
Bolted/Welded steel connection

Life Span
25-35 years with proper maintenance

Door Material
Mild Steel (MS) or Galvanized Iron (GI)

Material
Galvanized Iron (GI), Mild Steel (MS), Concrete

Roof Material
Galvanized Iron (GI) Sheet or Mild Steel (MS) Sheet

Thickness Of Wall Panel
2mm-5mm (for GI panel); up to 230mm (brick)

Door
Single/Double-leaf, lockable

Window
Present as per design, safety louvers if provided

Window Style
Fixed, with/without ventilation louvers

Floor Material
Galvanized Iron (GI) Grating or Concrete

Floor Load
Designed as per substation equipment load; typically 5-10 kN/m2

Roof Dead Load
0.5-1.5 kN/m2

Roof Live Load
1.0-2.5 kN/m2

Earthquake Intensity
Designed as per seismic zone (Zone II-IV)

Color
Silver/Metallic Grey (Galvanized)

Use
Erection of electrical sub-station structures; support for switchgear and power equipment

Applicable Voltage Range
11 kV to 765 kV Sub Stations

Design Compliance
IS, IEC and client-specific electrical codes

Assembly
On-site assembly, modular bolt connection

Load Carrying Capacity
Custom designed for transformer, isolator, CT/PT, panels, bus bars, etc.

Fire Resistance
Non-combustible structural components

Earthing Provision
Platforms and structure designed for proper earthing

Maintenance Requirement
Periodic inspection, repainting not required due to GI finish

Service Temperature Range
-10C to +55C

Structure Type
Lattice/Angular or Modular GI Framework

Galvanization Standard
IS 4759/ASTM A123 (85 microns zinc coating)

Corrosion Resistance
High resistance due to hot-dip galvanization

Wind Resistance
Designed for wind speeds up to 180 kmph

Power Sub Station GI Structure Trade Information

Minimum Order Quantity
50 Pieces

Supply Ability
1000 Pieces Per Month

Delivery Time
10-15 Days

Power Sub Station GI Structure About

Experience the majestic durability of our Power Sub Station GI Structure, engineered to exceed global standards like IS 4759/ASTM A123 with a glorious 85 microns zinc coating. Boasting uncommon corrosion and fire resistance, this modular lattice design ensures steadfast performance-even under seismic or high-wind conditions. Benefit from instant checkout and effortless reserve options. Perfectly suited for voltages from 11kV to 765kV, the structure is customizable for diverse substations and equipment. Enjoy minimal maintenance and a lifespan of 25-35 years, thanks to its superior GI finish.

Majestic Features & Flexible Application

The Power Sub Station GI Structure showcases hallmark features like high corrosion resistance, modular bolt connections for on-site assembly, and excellent wind and seismic stability. Its design is customizable for lattice/angular or modular GI frameworks, fitting various substation layouts. Usage covers the support of transformers, switchgear, and power equipment. To use, assemble onsite with modular bolts and ensure proper earthing. Ideal for power distribution, industrial substations, and utility support structures across India.

Sample, Market Coverage, and Certifications

Samples of our Glorious GI Structure are available for evaluation before large-scale deployment. Our goods are securely packed & dispatched across the main domestic market in India, with safe goods transport ensuring quick delivery. Each structure is compliant with IS and IEC standards, accompanied by all necessary certifications. Delivered products arrive ready for rapid assembly, minimizing project delays and offering peace of mind for your substation needs.

FAQ's of Power Sub Station GI Structure:

Q: How does the GI structure ensure corrosion resistance in harsh environments?

A: The Power Sub Station GI Structure features hot-dip galvanization with 85 microns zinc coating, granting it high resistance to corrosion, even in challenging conditions.

Q: What is the assembly process for this substation structure?

A: Assembly is handled onsite using modular bolt connections, making installation efficient and adaptable to specific layouts.

Q: When should periodic maintenance be performed on the GI structure?

A: Periodic inspections are recommended to maintain integrity, but repainting is unnecessary due to the maintenance-free GI finish.

Q: What is the maximum wind and earthquake resistance rating for this structure?

A: It is designed for wind speeds up to 180 kmph and adheres to seismic design codes for Zones II-IV, ensuring robust performance during adverse conditions.

Q: What are the main benefits of reserving and using this substation GI structure?

A: Customers enjoy instant checkout, secure reservation, unmatched structural durability, and prolonged lifespan, making it a wise investment for any power infrastructure.
